Louvered Air Cleaner For Harley CV / EFI 1991-2020 – Black

– Fits all 1991-2020 Harley-Davidson Sportsters XL
– Fits all 2004-2017 Harley-Davidson Dyna FXD
– Fits 1993-2006 Harley-Davidson Big Twins with CV carburetor
– Mounting hardware and gasket included
– Made in the USA

This classic Louvered Air Cleaner is made to fit a CV carburetor and EFI (electronic fuel injection) throttle body, as found on 1991-2020 Harley-Davidson XL Sportsters. On Sportsters the CV carb and EFI bolt pattern are the same. It also works on EFI (fuel injected) Dyna models from 2004-2017. The Louvered Air Cleaner will also work on 1993-2006 Harley-Davidson Big Twins that have a CV carb. It will not work on any fuel injected FL, Softail or Touring model as the bolt pattern for those models will be different.

Included are a black powder coated backing plate, paper filter, chrome louvered air cleaner cover with mounting bolt, mounting hardware and a carb-to-backing-plate gasket. The backing plate uses low-profile, stainless steel allen head bolts (hardware is included) to mount to the carburetor.

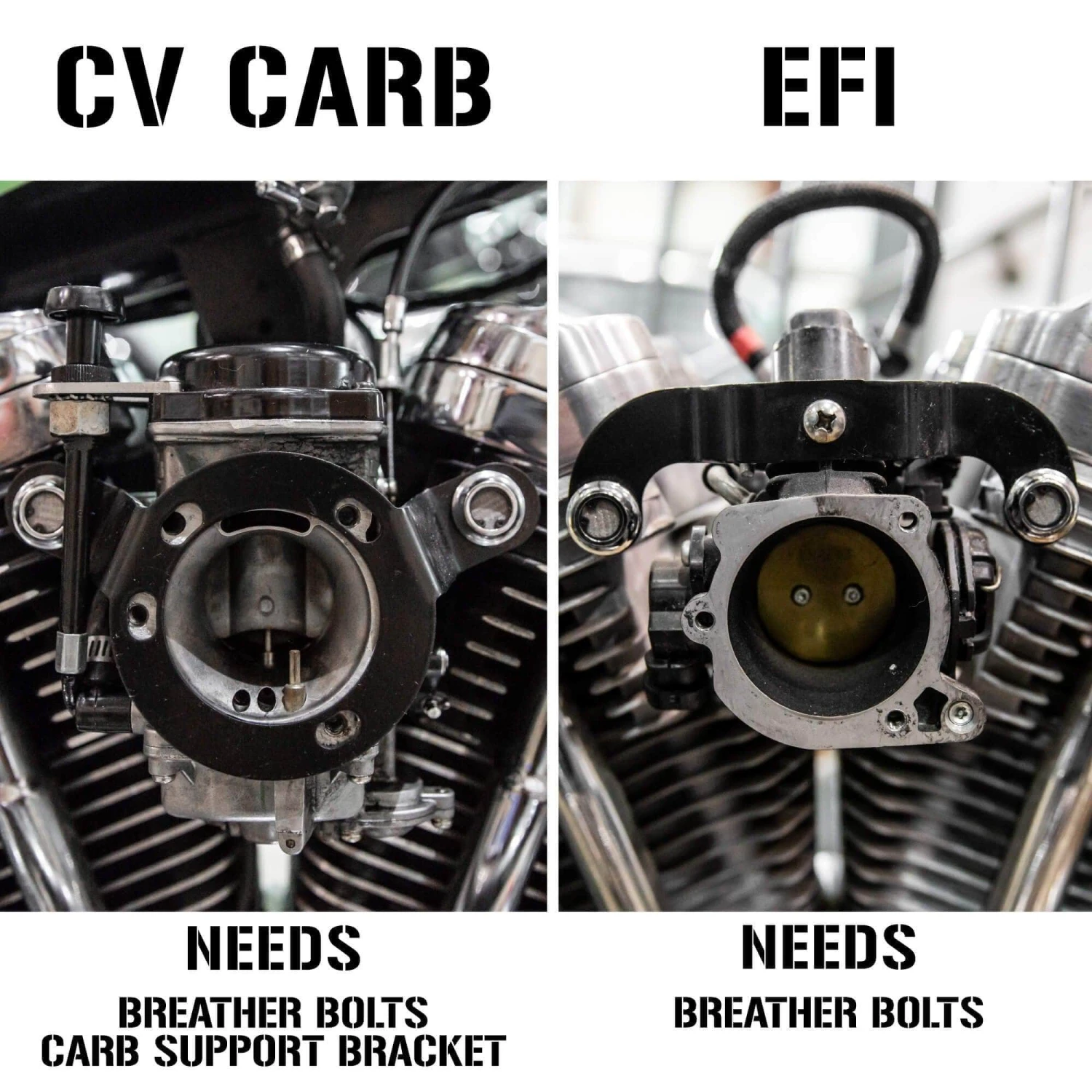

When installed on motorcycles with CV carburetors a

carburetor support bracket

must be used. A support bracket is not necessary when installed on bikes with EFI as it has a factory support bracket integrated into the throttle body. Crankcase

breather bolts

are also needed and are available in black, chrome or brass.

This well engineered air cleaner is inexpensive but oozes style. What else could you want? The air cleaner measures 4-5/8″ diameter by 2-1/4″ wide. There are also

premium, washable air filter elements

sold separately to replace the standard air filter that is included. Made in the USA.
